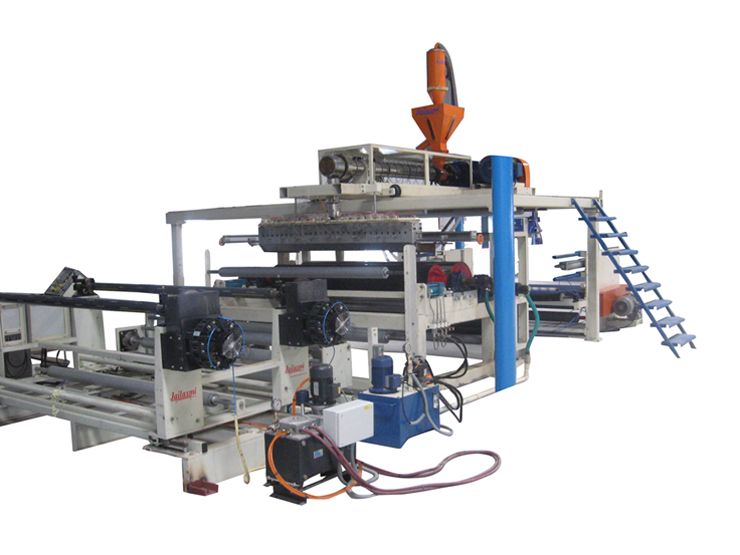

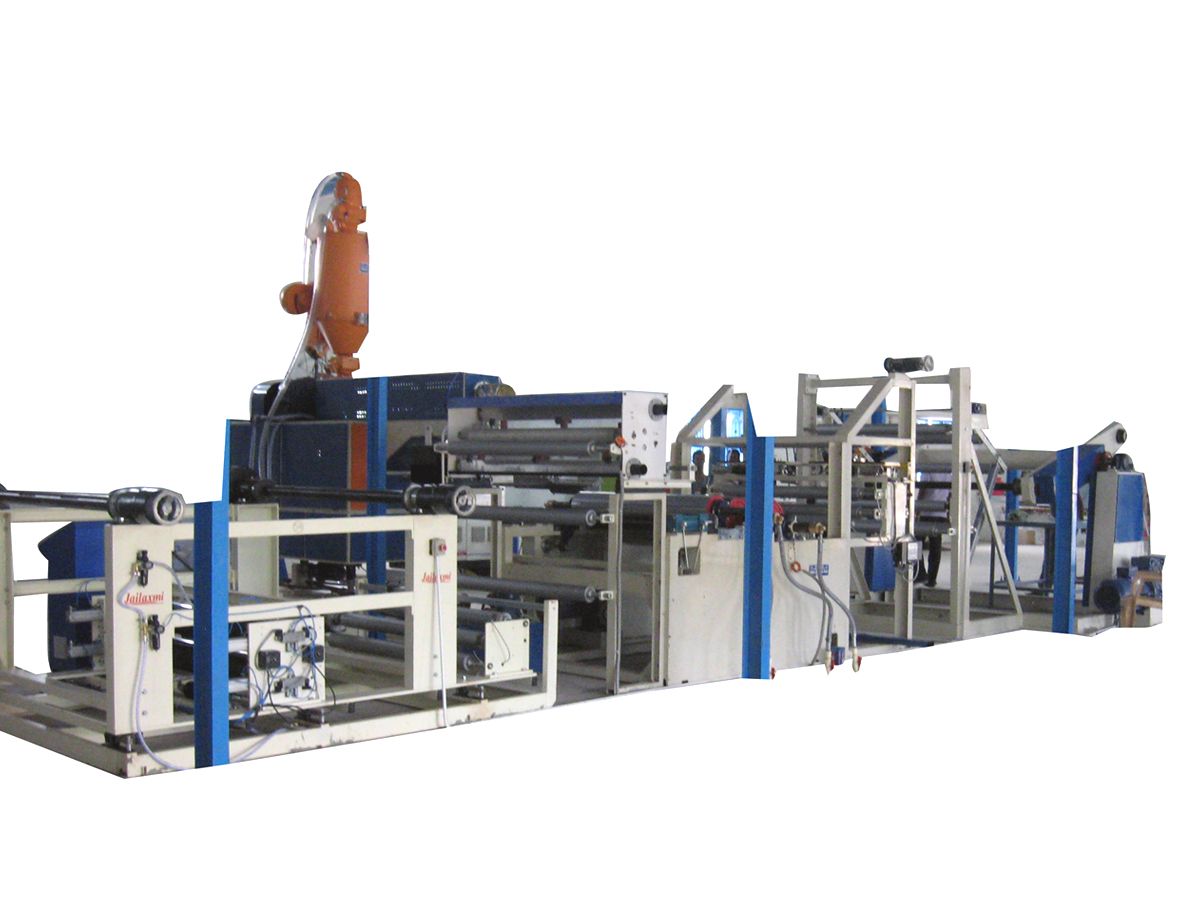

We offer the most complete product innovation in the Extrusion Coating Lamination Plant
Jailaxmi deliver excellent quality Extrusion Coating Lamination Plant. Jailaxmi Extrusion Coating Lamination Plants Jailaxmi offer are made from best quality parts with Jailaxmi well-designed control mechanism. Jailaxmi Extrusion Coating Lamination Plant is known for fast and accurate lamination of items. Jailaxmi Extrusion Coating Lamination Plant supports superior coating / lamination of LDPE/LLDPE on cotton cloth, woven fabric, paper, polyester film, and aluminum foil etc.
Features
- Different Lamination application like polyester, Fabric, Paper, Aluminum Foil etc.
- Nitrided Screw and Barrel made out from special nitro alloy steel for long life.
- Helical Gear Box with inbuilt Thrust Bearing.

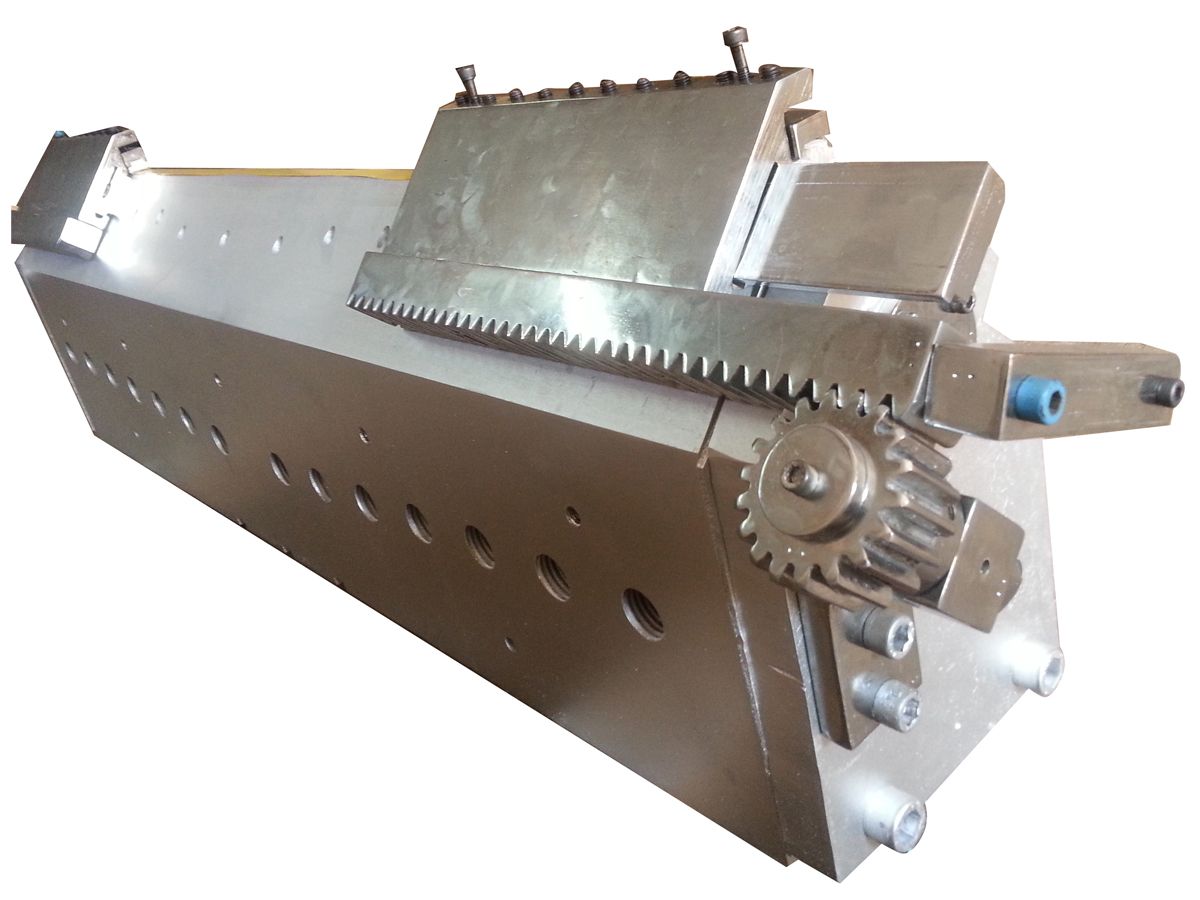

- Uniquely designed Coat hanger type T Die.

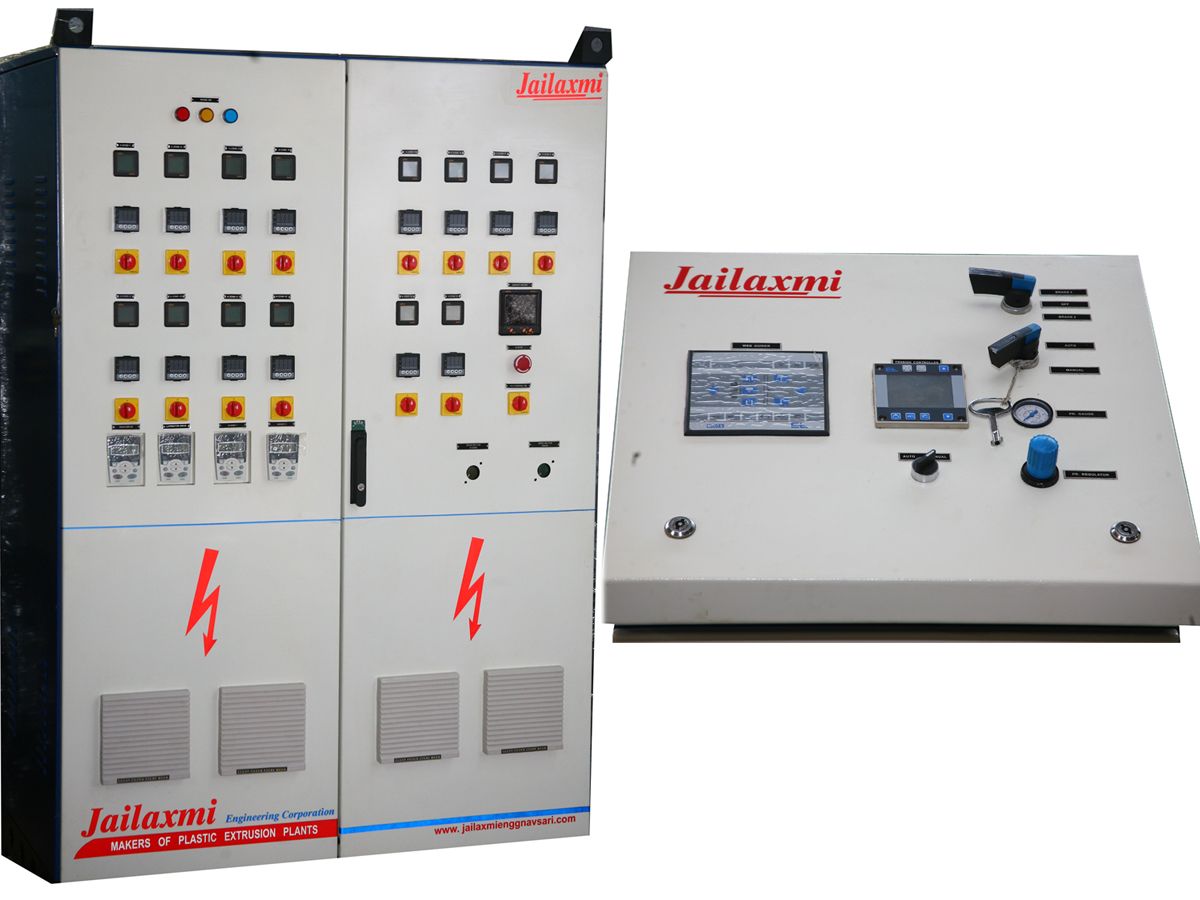

- “Touch Screen Type” Operation Panel & Synchronized System.
- Microprocessor based auto tuning PID action, thyristor Module temperature Controller.
Optional Accessories
- Digital Auto Cutter Guiding System
- Hopper Loader with Dryer
- Sandwitch Unwinder
Specifications
|
Model |
JEC-6850 39D | JEC-6965 45D | JEC-6965 52D | JEC-7075 56D | JEC-7190 65D |
|
Screw Diameter |
50 mm | 65 mm | 65 mm | 75 mm | 75 mm |
|
Extruder Drive (AC variable) |
11 KW | 15 KW | 18.5 KW | 22 KW | 26 KW |
|
L/D Ratio |
32:1 | 32:1 | 32:1 | 32:1 | 32:1 |
|
Max Output(Kg/hr) |
50-55 | 70-80 | 80-100 | 130-135 | 145-150 |
|
Laminator Roll Width |
39" | 45" | 52" | 56" | 65" |
|
'T' Die |
39" | 45" | 52" | 58" | 65" |
|
Min. Coating Thickness |
6 GSM | 6 GSM | 6 GSM | 6 GSM | 6 GSM |
|
Max. Coating Thickness |
50 GSM | 50 GSM | 50 GSM | 50 GSM | 50 GSM |
|
Overall Dimensions(ft.) |
30' L X 50' W X 12' H | 30' L X 50' W X 12' H | 35' L X 70' W X 12' H | 40' L X 75' W X 12' H | 35' L X 70' W X 12' H |
